Nickel Plating
-
-
-
n
General Details and Specification of nickel plated finishes
There is a nickel finish for almost any need, Nickel can be deposited soft or hard, dull or bright, depending on process used and conditions employed in plating. Hardness can range from I SO-SOO Vickers. Can be similar to stainless steel in color, or can be a dull gray or light gray (almost white) color. Corrosion resistance is a function of thickness. Has a low coefficient of thermal expansion-is magnetic. All steel parts having a hardness of Rc-40 or greater require a post bake at 375 + 25 F for 3 hours.

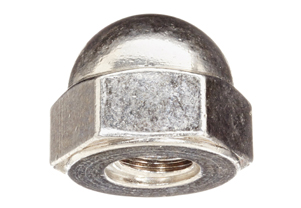

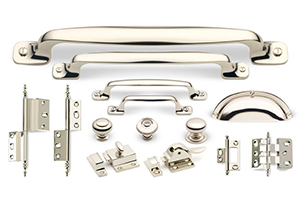

Bright Nickel is great for fasteners and finish, Hand tools, & Household lighting and plumbing fixtures
Benefits of nickel plating
- The bright Nickel offers a decorative finish
- Wear resistant
- Corrosion resistant
- Good diffusion barrier
- Magnetic
- Suitable for either Rack or Barrel plating
Specifications
| Specs | Thickness | Comments |
|---|---|---|
| QQ-N-290A | NOTE: All steel parts having a tensile strength of 220,000 or greater shall not be nickel plated without specific approval of procuring agency.. | |
| Class I | For corrosion protection. With typical 0.0002" copper undercoating prior to the nickel plate.. | |
| Class II | For engineering applications. | |
| Grade A | 0.0016" min. | |
| Grade B | 0.0012" min. | |
| Grade C | 0.0010" min. | |
| Grade D | 0.0008" min. | |
| Grade E | 0.0006" min. | |
| Grade F | 0.0004" min. | |
| Grade G | 0.0002" min. |
